Prometheus

Prometheus是一個開源監控解決方案，用于收集和聚合指標作為時間序列數據。更簡單地說，Prometheus 商店中的每個項目都是一個指標事件，并帶有它發生的時間戳。

mac 搭建Prometheus

地址：https://prometheus.io/

Mac 安裝

brew install prometheus

默認安裝路徑：

/usr/local/Cellar/prometheus

默認配置文件：

/usr/local/etc/prometheus.yml

啟動

prometheus --config.file=/usr/local/etc/prometheus.yml

訪問：http://localhost:9090

Spring boot 結合

springboot的web項目，pom依賴：

    <dependencies>
        <!--  web 依賴  -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-registry-prometheus</artifactId>
        </dependency>
    </dependencies>

Yml配置文件:

server:
  port: 8080
# 暴露監控端點
management:
  endpoints:
    web:
      exposure:
        include: '*'

監控端點：
http://127.0.0.1:8080/actuator/prometheus

# HELP executor_queued_tasks The Approximate number of tasks that are queued for execution
# TYPE executor_queued_tasks gauge
executor_queued_tasks{name="applicationTaskExecutor",} 0.0
# HELP executor_pool_max_threads The maximum allowed number of threads in the pool
# TYPE executor_pool_max_threads gauge
executor_pool_max_threads{name="applicationTaskExecutor",} 2.147483647E9
# HELP jvm_gc_pause_seconds Time spent in GC pause
# TYPE jvm_gc_pause_seconds summary
jvm_gc_pause_seconds_count{action="end of major GC",cause="Metadata GC Threshold",} 1.0
jvm_gc_pause_seconds_sum{action="end of major GC",cause="Metadata GC Threshold",} 0.072
jvm_gc_pause_seconds_count{action="end of minor GC",cause="Metadata GC Threshold",} 1.0
jvm_gc_pause_seconds_sum{action="end of minor GC",cause="Metadata GC Threshold",} 0.014
# HELP jvm_gc_pause_seconds_max Time spent in GC pause
# TYPE jvm_gc_pause_seconds_max gauge
jvm_gc_pause_seconds_max{action="end of major GC",cause="Metadata GC Threshold",} 0.0
jvm_gc_pause_seconds_max{action="end of minor GC",cause="Metadata GC Threshold",} 0.0
# HELP jvm_classes_loaded_classes The number of classes that are currently loaded in the JAVA virtual machine
# TYPE jvm_classes_loaded_classes gauge
jvm_classes_loaded_classes 7566.0
# HELP jvm_gc_memory_promoted_bytes_total Count of positive increases in the size of the old generation memory pool before GC to after GC
# TYPE jvm_gc_memory_promoted_bytes_total counter
jvm_gc_memory_promoted_bytes_total 3235200.0
# HELP Tomcat_sessions_active_current_sessions
# TYPE tomcat_sessions_active_current_sessions gauge
tomcat_sessions_active_current_sessions 0.0
# HELP executor_pool_size_threads The current number of threads in the pool

配置 prometheus.yml

global:
  scrape_interval: 15s
scrape_configs:
  - job_name: "prometheus"
    static_configs:
    - targets: ["localhost:9090"]
  # 創建job
  - job_name: "tomato-study-prometheus"
    scrape_interval: 5s
    metrics_path: '/actuator/prometheus'
    static_configs:
    - targets: ["localhost:8080"]

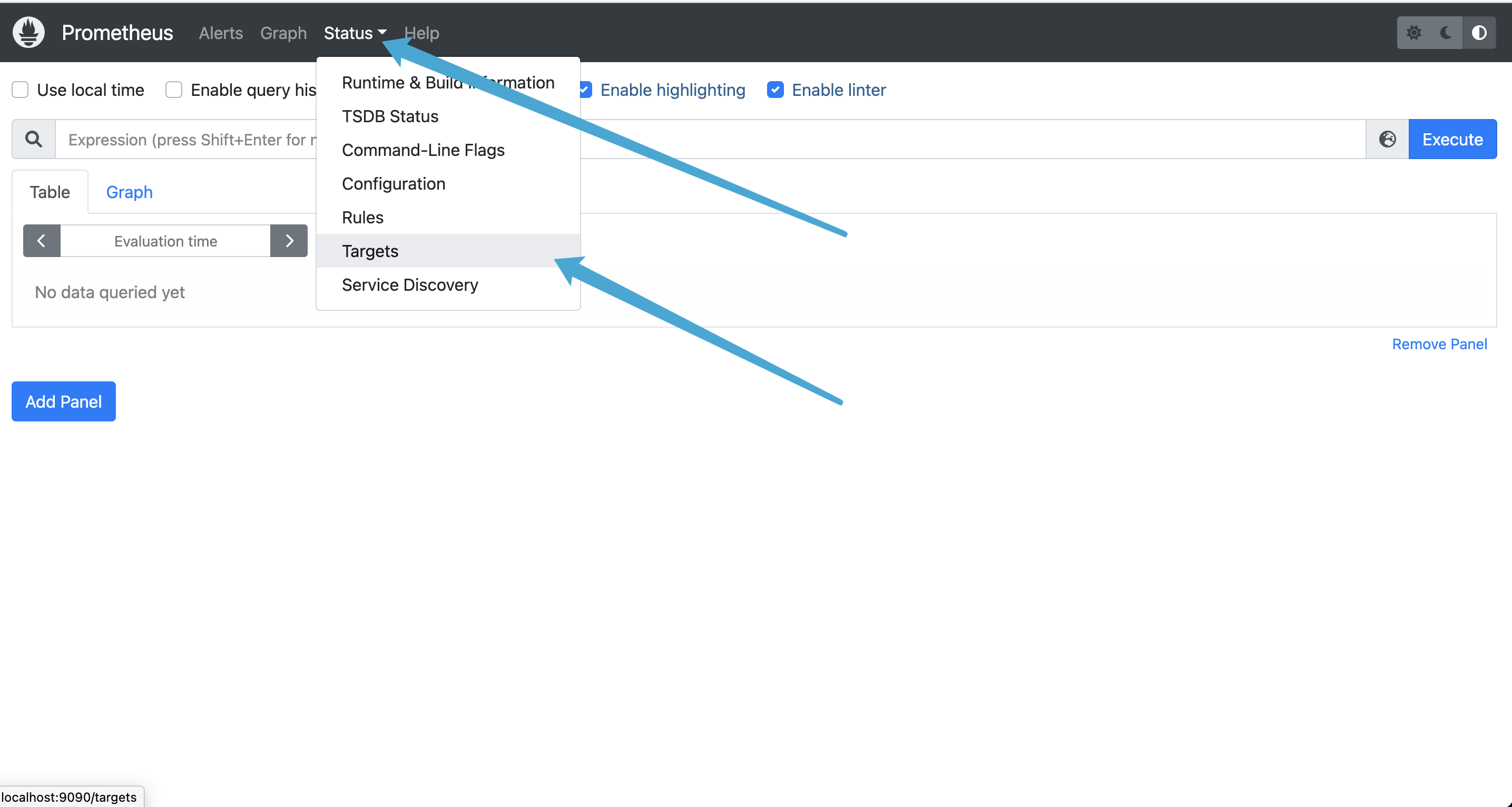

重啟 prometheus：

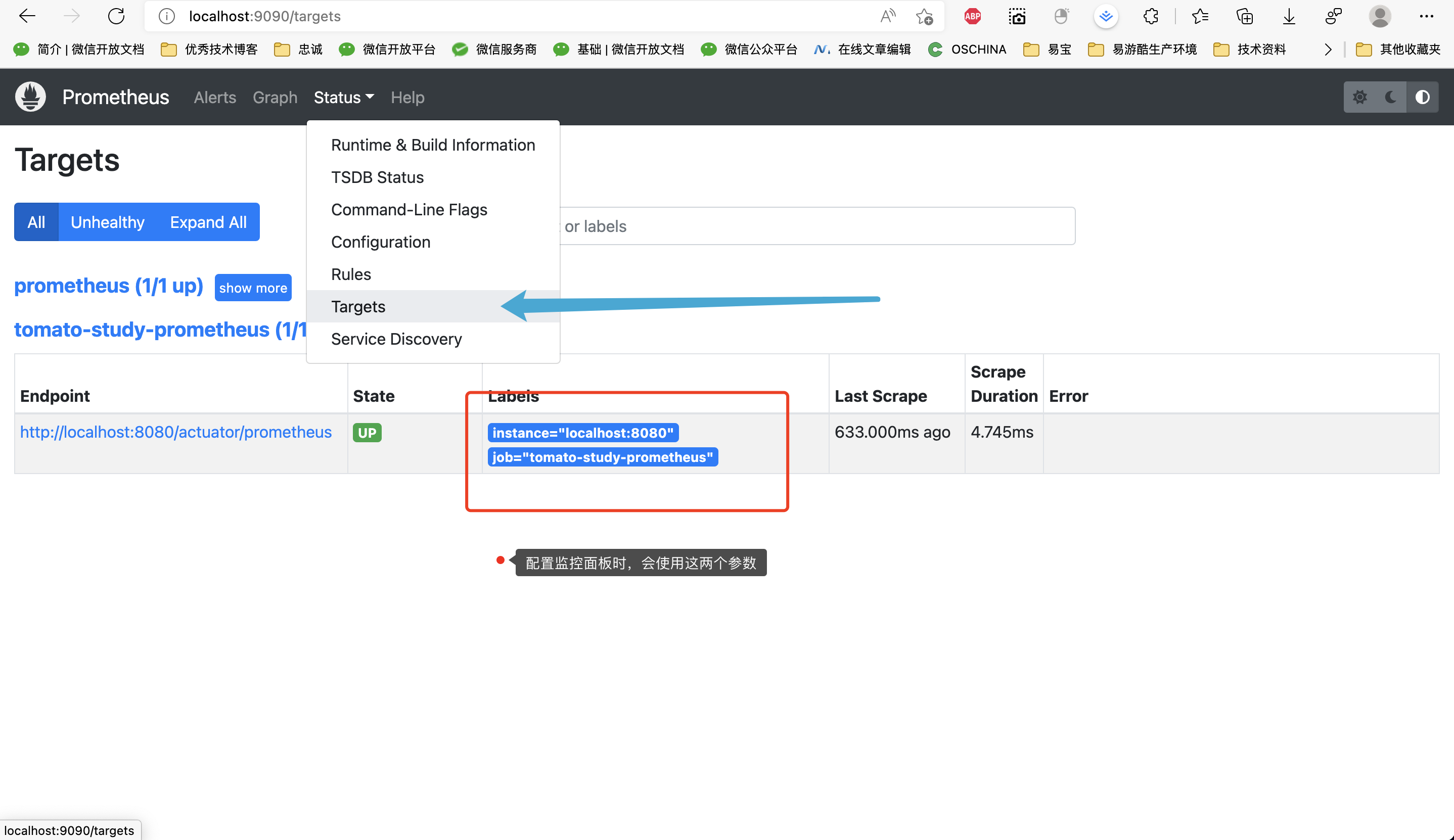

http://localhost:9090/targets

安裝 grafana

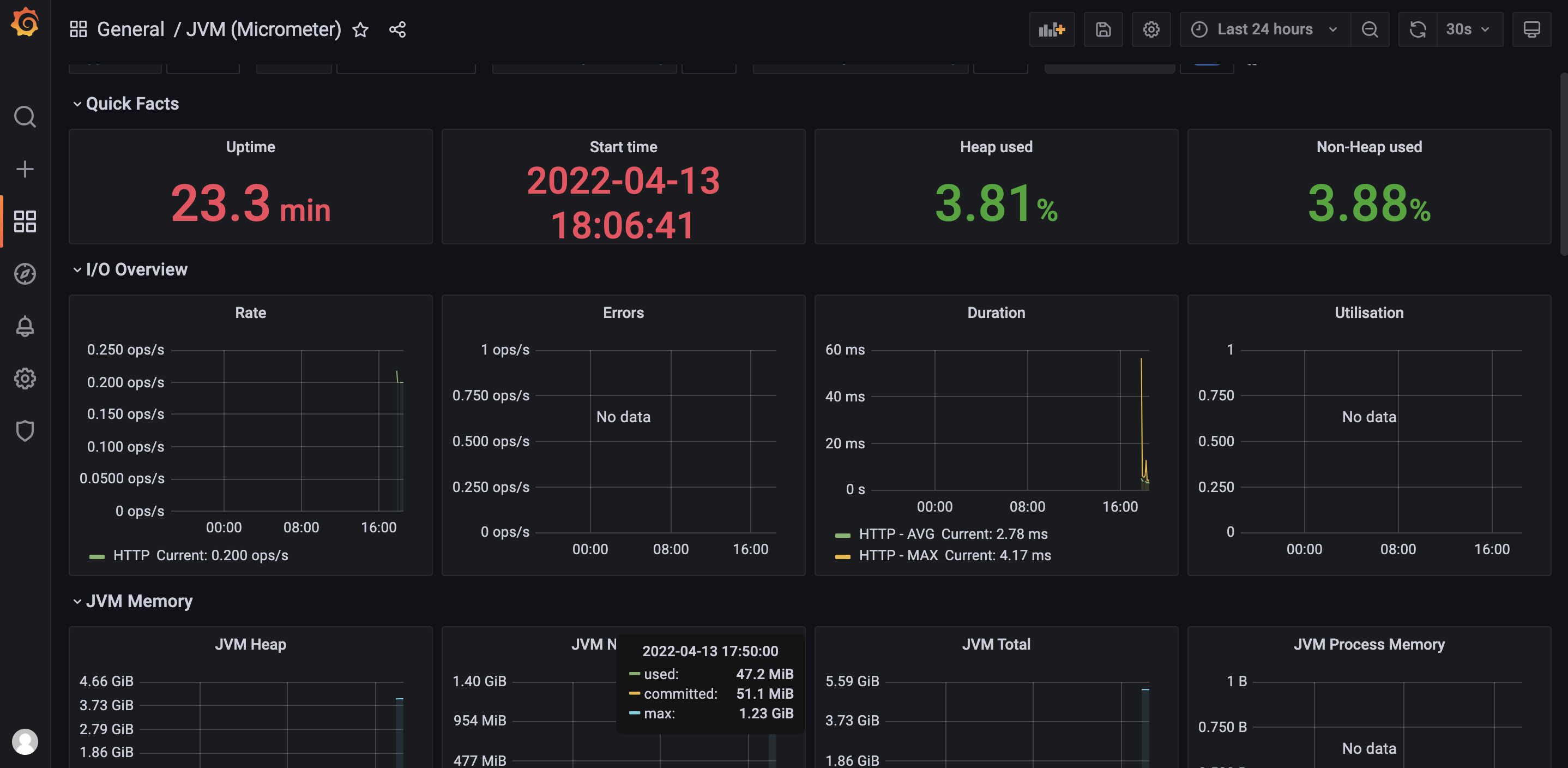

展示各種漂亮的圖表。

Mac 安裝

brew install grafana

默認安裝路徑：

/usr/local/Cellar/grafana/

啟動：

grafana-server --config=/usr/local/etc/grafana/grafana.ini --homepath /usr/local/share/grafana --packaging=brew cfg:default.paths.logs=/usr/local/var/log/grafana cfg:default.paths.data=/usr/local/var/lib/grafana cfg:default.paths.plugins=/usr/local/var/lib/grafana/plugins

注：如需修改默認端口，可修改
/usr/local/etc/grafana/grafana.ini

訪問：http://localhost:3000/ admin/admin

使用前必須更改密碼 admin/123qwe
